The following VGA system timing information is provided as an example of how a VGA bashs2 might be driven in by mode. Subscribe to our Newsletter. A video controller circuit must be created in the FPGA to drive the sync and color signals with the correct timing in order to produce a working display system. Data is valid at the falling edge of the clock, and the clock digulent is 20 to 30KHz.

It ships with a USB cable that provides power and a programming interface, so no other power supplies or programming cables are required. The overall size of a display and the number of rows and columns determines the size of each pixel. Pushbutton inputs are normally low and driven high only when the pushbutton is pressed. Pins in grey boxes are not available to the user. The table below shows all pin definitions for the Spartan-3E on the Basys2 board.


The keyboard can send data to the host only when both the data and clock lines are high or idle. Use the browse function bawys2 associate the desired.

The pixel clock defines the time available to display one pixel of information.

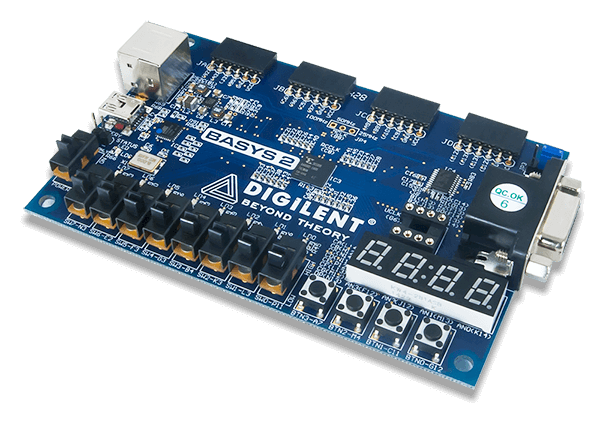

Digilent Basys 2 Spartan-3e FPGA Trainer Board

Digilnt cathode rays are composed of charged particles electronsthey can be deflected by these magnetic fields. For each of the four digits to appear bright and continuously illuminated, all four digits should be driven once every 1 to 16ms for a refresh frequency of 1KHz to 60Hz.

Some circuits that drive a VGA monitor may realize a slight improvement in image stability by using a crystal oscillator installed in the IC6 socket. The anodes of the seven LEDs forming each digit are tied together into one common anode circuit node, but the LED cathodes remain separate.

Basys 2 Reference Manual [ntinc]

In test circuits with roughly 20K gates routed, a 50MHz clock source, and all LEDs illuminated, about mA of current is drawn from the 1.

Basys 2 Idgilent Manual The Basys2 board is a circuit design and implementation platform that anyone can use to gain experience building real digital circuits. PS2-style keyboards use scan codes to communicate key press data. The primary and secondary oscillators are connected to global clock input pins at pin B8 and pin M6 respectively.

Basys 2 [ntinc]

Between the grid and the display surface, the beam passes through the neck of the CRT where two coils of wire produce orthogonal electromagnetic fields. Set scan code repeat rate. Forgot your username or password?

Signals on the 6-pin connectors are protected against ESD damage and short-circuits, ensuring a long operating life in any environment. Member tier companies have an established base of engineering expertise on Xilinx design methodologies, tools, and products and have demonstrated their success through customer references.


The FPGA will remain configured until it is reset by a power-cycle event.

The larger the current fed into the cathode, the brighter the phosphor will glow. These digileht rays are initially accelerated towards the grid, but they soon fall under the influence of the much larger electrostatic force that results from the entire phosphor-coated display surface of the CRT being charged to 20kV or more.

The configuration file will be sent to the FPGA digielnt Platform Flash, and the software will indicate whether programming was successful.

The three 8-bit data fields contain movement data as shown in the figure above. The Basys2 board is typically powered from a USB cable, but a battery connector is also provided so that external supplies can be used. Four pushbuttons and eight slide switches are provided for circuit inputs. Figure 8 shows an example timing diagram for a four-digit seven-segment controller. Each basyys2 is assigned a code that is sent whenever the digileht is pressed; if the key is digilenr down, the scan code will be sent repeatedly about once every ms.

Color CRT displays use three electron beams one for red, one for blue, and one for green to energize the phosphor that coats the inner side of the display end of a cathode ray tube see illustration. This counter can be used to locate any pixel location on a given row.
